Product Features
1. Precise Temperature Field Control
Exceptional Temperature Uniformity: YG-IA model axial temperature difference ≤0.5℃, radial temperature difference ≤0.25℃
Wide Temperature Range: Covers 300℃ to 1200℃, meeting various thermocouple calibration requirements
Stable and Reliable: Temperature field stability meets the highest metrology standards
2. Rugged and Durable Design
Horizontal Structure: Easy operation with convenient thermocouple clamping
Optimized Furnace Dimensions: Φ40mm aperture accommodates multiple thermocouple specifications
Premium Heating Elements: Long lifespan, high thermal efficiency, and uniform temperature distribution
3. Safe and Convenient Operation
Standard Power Supply: 220VAC operation for conventional laboratory environments
Compact Form Factor: Minimal footprint for efficient lab layout
Moderate Weight: 15-20kg for easy mobility and installation
Applicable Thermocouple Types
1. Base Metal Thermocouples
Type K (Nickel-Chromium – Nickel-Silicon)
Type E (Nickel-Chromium – Constantan)
Type J (Iron – Constantan)
Type N (Nickel-Chromium-Silicon – Nickel-Silicon)
2. Precious Metal Thermocouples
Type S (Platinum-Rhodium 10-Platinum)
Type R (Platinum-Rhodium 13-Platinum)
3. Standard Thermocouples
Type S Standard Thermocouple
Type R Standard Thermocouple
Application Areas
1. Metrology Verification Institutions
Establish thermocouple measurement standard apparatus
Conduct mandatory thermocouple verification services
Provide third-party calibration services
2. Industrial Manufacturing Enterprises
Factory inspection of thermocouples on production lines
Periodic verification of thermocouples in industrial settings
Equipment validation for quality control departments
3. Research Institutes
Experimental studies on thermocouple performance
Development of temperature measurement technologies
Thermal-electric property testing of new materials
Typical Application Scenarios
1. Batch Calibration of Thermocouples: The YG-IA’s extended furnace chamber accommodates simultaneous calibration of multiple thermocouples.
2. High-Precision Calibration: The YG-I’s compact design is ideal for single-unit calibration to high standards.
3. On-Site Inspection Services: The portable design facilitates transport to industrial sites.
Performance Advantages
1. Precision and Reliability
Strict compliance with national standards: All technical specifications meet regulatory requirements
Superior temperature field performance: Ensures thermocouple calibration accuracy
Long-term stability: Durable construction with low maintenance costs
2. Professional and Practical
Comprehensive compatibility: Supports all types of base metal and precious metal thermocouples
User-Friendly Operation: Horizontal design facilitates easy clamping and enhances workflow efficiency
Safety-Focused Design: Rational power configuration ensures safe and reliable operation
3. Cost-Effective Efficiency
Optimized Energy Consumption: Rational power design minimizes operational costs
Low Maintenance: Simple structure reduces failure rates
High ROI: Single unit accommodates diverse thermocouple calibration needs
|
|

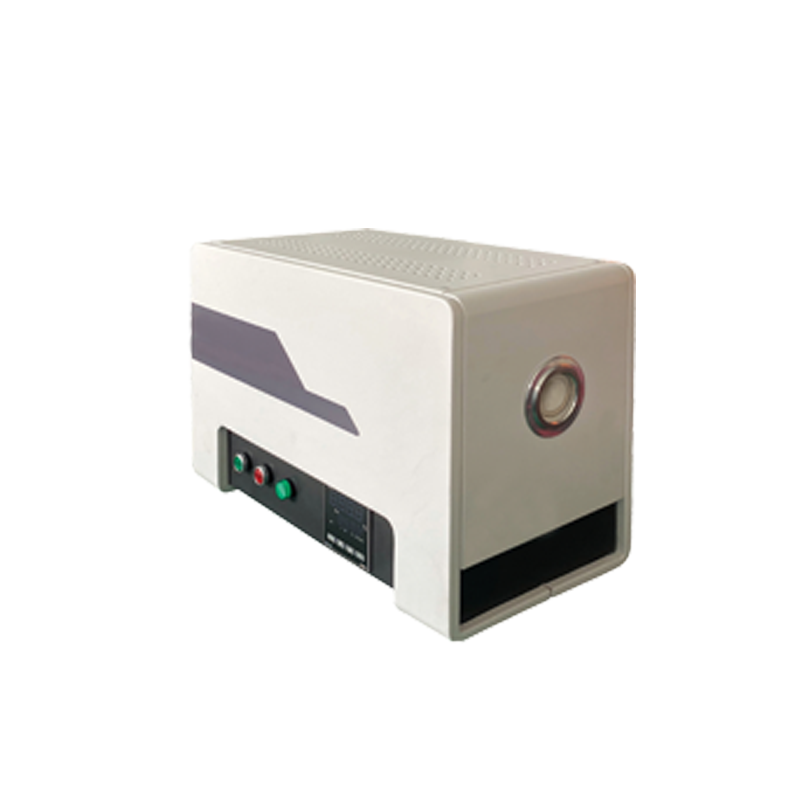

Horizontal Thermocouple Calibration Furnace Images
|
